An alternative would be to mark both functions as NOINLINE, which the Simplifier will adhere to. You might also want to have `countA` and `countB` close over a local variable in order for them not to be floated to the top-level. If top-level bindings aren't an issue for you, you could simply use mutually recursive even/odd definitions. Otherwise, something like this might do: foo :: Bool -> Int -> Bool foo b n | n > 10 = even n | otherwise = odd n where even 0 = b even n = odd (n-1) {-# NOINLINE even #-} odd 0 = b odd n = even (n-1) {-# NOINLINE odd #-} GHC 8.10 will simply duplicate both functions into each branch, but GHC master produces irreducible control flow for me: Lib.$wfoo = \ (b_sTr :: Bool) (ww_sTu :: GHC.Prim.Int#) -> joinrec { $wodd_sTi [InlPrag=NOINLINE] :: GHC.Prim.Int# -> Bool [LclId[JoinId(1)], Arity=1, Str=<1L>, Unf=OtherCon []] $wodd_sTi (ww1_sTf :: GHC.Prim.Int#) = case ww1_sTf of wild_X1 { __DEFAULT -> jump $weven_sTp (GHC.Prim.-# wild_X1 1#); 0# -> b_sTr }; $weven_sTp [InlPrag=NOINLINE, Occ=LoopBreaker] :: GHC.Prim.Int# -> Bool [LclId[JoinId(1)], Arity=1, Str=<1L>, Unf=OtherCon []] $weven_sTp (ww1_sTm :: GHC.Prim.Int#) = case ww1_sTm of wild_X1 { __DEFAULT -> jump $wodd_sTi (GHC.Prim.-# wild_X1 1#); 0# -> b_sTr }; } in case GHC.Prim.># ww_sTu 10# of { __DEFAULT -> jump $wodd_sTi ww_sTu; 1# -> jump $weven_sTp ww_sTu } Cheers, Sebastian Am Mo., 22. Nov. 2021 um 21:37 Uhr schrieb Simon Peyton Jones via ghc-devs < ghc-devs@haskell.org>:

GHC breaks strongly connected components with a so-called loop-breaker. In this case, maybe countA is the loop-breaker; then countB can inline at all its call sites, and it'll look very reducible. See "Secrets of the GHC inliner".

If you make countA and countB each call themselves, as well as the other, that will defeat this plan, and you may get closer to your goal.

I'm guessing a bit, but hope this helps.

Simon

PS: I am leaving Microsoft at the end of November 2021, at which point simonpj@microsoft.com will cease to work. Use simon.peytonjones@gmail.com instead. (For now, it just forwards to simonpj@microsoft.com.)

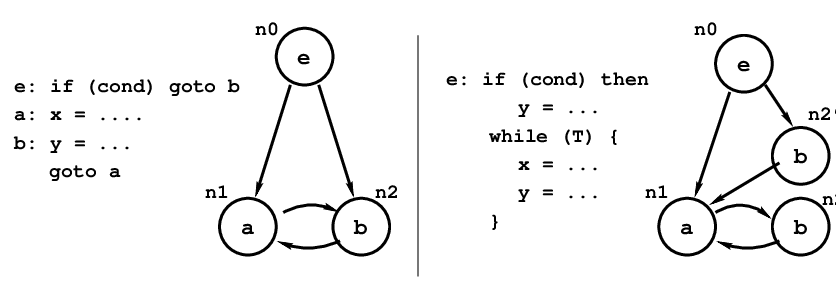

| -----Original Message----- | From: ghc-devs On Behalf Of Norman | Ramsey | Sent: 22 November 2021 19:52 | To: ghc-devs@haskell.org | Subject: [EXTERNAL] can GHC generate an irreducible control-flow graph? | If so, how? | | I'm trying to figure out how to persuade GHC to generate an irreducible | control-flow graph (so I can test an algorithm to convert it to | structured control flow). | | The attached image shows (on the left) the classic simple irreducible | CFG: there is a loop between nodes A and B, but neither one dominates | the other, so there is no loop header. I tried to get GHC to generate | this CFG using the following source code: | | length'' :: Bool -> List a -> Int | length'' trigger xs = if trigger then countA 0 xs else countB 0 xs | where countA n Nil = case n of m -> m | countA n (Cons _ as) = case n + 1 of m -> countB m as | countB n Nil = case n of m -> m | countB n (Cons _ as) = case n + 2 of m -> countA m as | | Unfortunately (for my purposes), GHC generates a perfectly lovely | reducible flow graph with a single header node. | | It is even possible for GHC to generate an irreducible control-flow | graph? If so, how can it be done? | | | Norman
