I have to say I'm very sceptical about things like Fruit which rely on reactive animation, ever since I set our students an exercise implementing a simple space-invaders game in such a system, and had no end of a job producing an example solution. Things like getting an alien spaceship to move slowly downwards, moving randomly to the left and right, and bouncing off the walls, turned out to be a major headache. Also I think I had to use "error" to get the message out to the outside world that the aliens had won. My suspicion is that reactive animation works very nicely for the examples constructed by reactive animation folk, but not for my examples. I wonder how you would do it? A translation of the exercise I set, without the hints we had to put in, is as follows:
Earth is being attacked by aliens! The aliens are flying triangular spaceships downwards. At each moment a spaceship flies either left and down, or right and down, or directly down. The directions change at random, except that a spaceship may not leave the window. Against them stands only a (rectangular) gun, driven with the mouse. When the middle button is pressed, the lowest ship directly above is destroyed. However should a ship reach the (horizontal, straight) ground, the war is lost. Implement the following simulation function: spaceInvaders :: Double -> IO () The larger the Double is, the faster the spaceships should be.
Hi George, Appologies for taking a little while to reply. I actually finished the game a few days after you sent your message, but was travelling last week and away from my email. George Russell wrote:
I have to say I'm very sceptical about things like Fruit which rely on reactive animation, ever since I set our students an exercise implementing a simple space-invaders game in such a system, and had no end of a job producing an example solution. Things like getting an alien spaceship to move slowly downwards, moving randomly to the left and right, and bouncing off the walls, turned out to be a major headache. Also I think I had to use "error" to get the message out to the outside world that the aliens had won.
I'm sorry to hear you had such unfortunate experiences using reactive animation. However, I'd like to make just a few points in defense of reactive animation (and those of us who work on such systems): First, you don't mention which particular reactive animation system you were using for your class. Were the problems you encountered specific issues with the implementation you were using, or were they deeper problems with the whole conceptual framework of reactive animation? Since you don't really clarify what the specific problems were, it's hard to tell. Second, I think it's important to remember that all of the implementations of reactive animation (and many of the other more interesting software systems available in the f.p. community) that I know of are essentially research prototypes in varying stages of maturity. While negative experiences with research prototypes are unpleasant, they also present an opportunity. If you clearly articulate the problems you encounter it allows you or others to either (a) conclude definitively that the underlying idea is fundamentally flawed, or (preferably) (b) expand either the idea or the implementations to address your specific problems. As it stands, though, your message seems to me to be a bit like throwing up your hands and concluding that Operating Systems are a bad idea because Windows crashed once. An unfortunate and frustrating experience, to be sure, but it might not justify abandoning the whole idea. Finally, functional reactive programming, like functional programming or object-oriented programming or any other new programming paradigm or programming language, is really about a new way of thinking. My experience is that when experienced programmers learn a new programming paradigm, the new paradigm often seems disorienting, uncomfortable, awkward and counter-intuitive at first, because it has some new or different way of doing things that may be very different from what the programmer is used to from previous systems. Hopefully, after enough experience, one eventually learns to think directly in the new model, instead of trying to transliterate every concept back into the old way of doing things.
My suspicion is that reactive animation works very nicely for the examples constructed by reactive animation folk, but not for my examples.
I wonder how you would do it? A translation of the exercise I set, without the hints we had to put in, is as follows: [...]

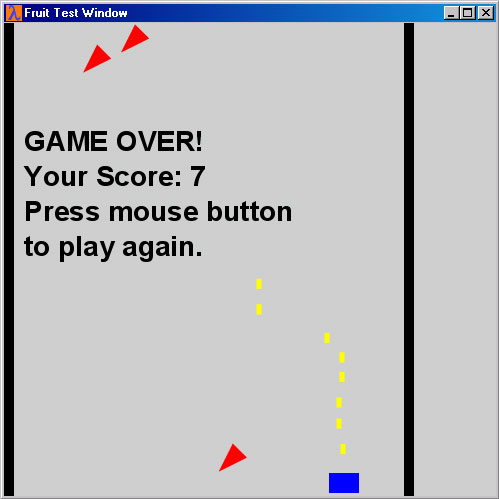

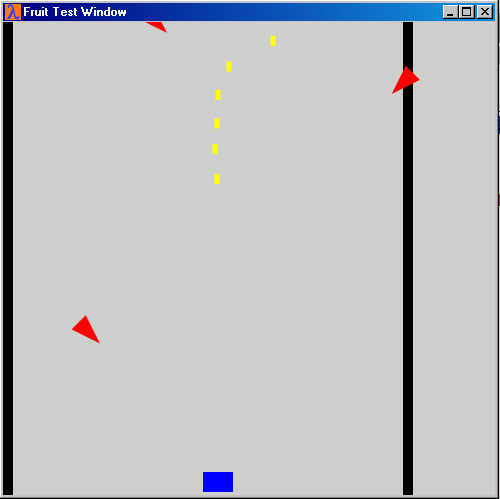

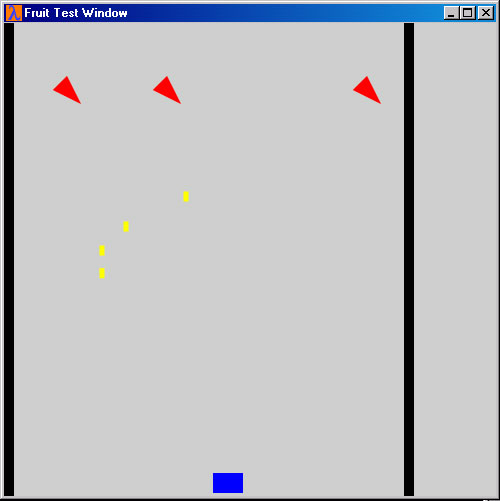

Working source code for SpaceInvaders in Fruit (along with a few screenshots) is attached to this message. The invaders randomly change direction, bounce off the walls, accelerate as they travel down the screen, and die when hit by a bullet, as you specified. When the game is over, this fact and the score are overlayed on a snapshot of the game in progress, and the user can play again by clicking the mouse. This took me about a day to implement. Since this example is fundamentally similar to the bouncing balls example and lots of other games of this sort, I factored out the common code into a small (~ 125 lines) library for managing a dynamic collection of simulated entities, much of which is copied from our "FRP, Continued" paper. The rest of the implementation of SpaceInvaders comes out to about 400 lines of code, the bulk of which is taken up by graphics, comments, and the data type and projection functions for the simulation state. I found it reasonably natural to develop the invaders and the gun as signal functions (which can be tested and debugged independently of the rest of the game), and I wrote functions to specify when signal functions are added to or removed from the time-varying collection that comprises the simulation according to the rules of the game. If anyone is interested in actually running the code, I've made a new release of Fruit available (at http://haskell.org/fruit ) that includes this example in the directory "examples/SpaceInvaders". -antony -- Antony Courtney Grad. Student, Dept. of Computer Science, Yale University antony@apocalypse.org http://www.apocalypse.org/pub/u/antony -- -- A simple implementation of a space invaders game in Fruit -- -- Author: Antony Courtney, 06 Feb. 03 -- -- In response to a message on the Haskell GUI list <gui@haskell.org> -- by George Russell of 04 Feb 2003. module SpaceInvaders where import Haven import GUI import Random import List import AFRPSimUtils import GUISimUtils -- N.B.: I'll try to develop this in a modular way from the original -- specification, developing some individual components that can -- be tested and reused independently of one another as much as possible. -- Simple graphics stuff: -- walls: rpath :: Point -> Double -> Double -> Path rpath pt w h = outline $ rectangle pt w h vWalls :: Path vWalls = rpath (point 0 0) 10 500 <++> rpath (point 400 0) 10 500 wallPath :: Path wallPath = vWalls wallPic :: Picture wallPic = withColor black $ picFill wallPath -- the outline of an invader centered at (xpos,ypos), with heading theta. -- We'll rotate the triangle so that it points in the direction of the -- heading: invaderPath :: Double -> Double -> Double -> Path invaderPath xpos ypos theta = translate (vector xpos ypos) %$ rotate (-theta) %$ polygon [point (-15) (-10),point 15 0,point (-15) 10] -- render invaders in red: renderInvader :: Path -> Picture renderInvader invader = withColor red $ picFill invader -- First, let's construct an animation of a ship that accelerates in the -- direction specified by accTheta. -- Since we know that accTheta will eventually be a time-varying input, -- we specify it as an input signal rather than a (static) argument. simpleInvader :: Double -> Point -> SF Double Path simpleInvader gameSpeed pt0 = proc accTheta -> do rec -- accelerate in x faster than in y: vx <- integral -< 3 * gameSpeed * cos accTheta vy <- integral -< (-gameSpeed) * sin accTheta xi <- integral -< vx yi <- integral -< vy let xpos = (pointX pt0) + xi ypos = (pointY pt0) + yi let invader = invaderPath xpos ypos accTheta returnA -< invader -- An executable test of simpleInvader: invTest0 :: GUI () () invTest0 = proc (gin,_) -> do inv <- simpleInvader 50 (point 250 0) -< ((-pi) / 6) returnA -< (renderInvader inv,()) -- According to the spec, an alien is a triangular space ship that can -- change between one of three directions at random. -- -- We'll maintain two random signals: One will tell us whether or -- not to change direction, and the other will tell us what the new -- heading should be. randomInvader :: (RandomGen g) => g -> Double -> Point -> SF () Path randomInvader g gameSpeed pt0 = proc _ -> do rec rs <- randomRsf (1 :: Int,100) g -< () changeDirE <- edge -< (rs < (round (p * 100))) ds <- randomRsf (0,2) g -< () let newDirE = changeDirE `tag` (headings !! ds) theta <- hold ((-pi)/4) -< newDirE invader <- simpleInvader gameSpeed pt0 -< theta returnA -< invader where headings = [ ((-pi) * (3/4)), ((-pi) / 2), ((-pi) / 4)] p = 0.07 -- instantaneous probability of change in direction invTest1 :: (RandomGen g) => g -> GUI () () invTest1 g = proc (gin,_) -> do inv <- randomInvader g 20 (point 250 0) -< () returnA -< (renderInvader inv,()) -- Now let's make the invader bounce off of the walls. -- -- All we need to do here is detect when we hit a wall (x position crosess -- below left wall or above right wall) and create an impulse in the -- acceleration (which leads to a sudden step in velocity). We'll use -- the impulseIntegral utility signal function for this. (There is no -- "magic" in this utility function; See Paddleball implementation in -- Hudak's book or the fruit paper for a similar "bounce" effect). -- The code here is copied from simpleInvader, with a few minor changes -- to use impulseIntegral in place of integral for computing x velocity. bounceInvader :: Double -> Point -> SF Double Path bounceInvader gameSpeed pt0 = proc accTheta -> do rec -- accelerate in x faster than in y: let ax = 3 * gameSpeed * cos accTheta vx <- impulseIntegral -< (ax, xbounce) vy <- integral -< (-gameSpeed) * sin accTheta xi <- integral -< vx yi <- integral -< vy let xpos = (pointX pt0) + xi ypos = (pointY pt0) + yi hitL <- edge -< xpos < 15 hitR <- edge -< xpos > 400 -- We use the velocity just before the time of impact to compute -- the impulse: dvx <- iPre 0 -< vx let xbounce = (hitL `merge` hitR) `tag` (-2 * dvx) let invader = invaderPath xpos ypos accTheta returnA -< invader invTest2 :: GUI () () invTest2 = proc (gin,_) -> do inv <- bounceInvader 50 (point 250 0) -< ((-pi) * 0.75) returnA -< (renderInvader inv,()) -- Now let's just use "bounceInvader" in place of "simpleInvader" in -- the implementation of randomInvader: rbounceInvader :: (RandomGen g) => g -> Double -> Point -> SF () Path rbounceInvader g gameSpeed pt0 = proc _ -> do rec rs <- randomRsf (1 :: Int,100) g -< () changeDirE <- edge -< (rs < (round (p * 100))) ds <- randomRsf (0,2) g -< () let newDirE = changeDirE `tag` (headings !! ds) theta <- hold ((-pi)/4) -< newDirE invader <- bounceInvader gameSpeed pt0 -< theta returnA -< invader where headings = [ ((-pi) * (3/4)), ((-pi) / 2), ((-pi) / 4)] p = 0.07 -- instantaneous probability of change in direction invTest3 :: (RandomGen g) => g -> GUI () () invTest3 g = proc (gin,_) -> do inv <- rbounceInvader g 20 (point 250 0) -< () returnA -< (renderInvader inv,()) -- The player's gun, centered at the given x position: gunPath :: Double -> Path gunPath xpos = outline $ rectangle (point (xpos - 15) 450) 30 20 renderGun :: Path -> Picture renderGun gun = withColor blue $ picFill gun gunTest0 :: GUI () () gunTest0 = proc (gin,_) -> do mpos <- ginMouse -< gin let gunPic = renderGun (gunPath (pointX mpos)) returnA -< (gunPic,()) -- Let's assemble these components into a game, using the basic -- simulation framework provided by GUISimUtils. -- -- Recall that, in Fruit, a GUI is just: -- GUI a b = SF (GUIInput,a) (Picture,b) -- Our simulation framework provides a small amount of infrastructure -- (built around AFRP's pSwitch combinator) for simulations composed of -- a time-varying collection of signal functions. The user needs only -- to specify the initial collection, a signal function that specifies -- when to add a new element to the collection, and a function (applied -- pointwise) to determine when an element should be removed from the -- collection. -- -- Each simulated entity has type: -- SimGUI a b = SF ((GUIInput,a),[b]) (Picture,b) -- -- This is almost identical to the (GUI a b), but the input signal to -- a SimGUI includes a [b]; this is a delayed, fed-back view of the entire -- simulated world, which allows simulated entities to react to other -- entities in the simulation. -- In addition to a Picture, each SimGUI produces an output signal -- carrying the individual GUI's contribution to the game universe, -- collected together in the following algebraic data type: -- data GameObject = Invader { objPath :: Path, objKilled :: Event (), -- hit by a bullet invLanded :: Event () -- game over! } | Bullet { objPath :: Path, objKilled :: Event () -- hit an invader } | Gun { objPath :: Path, objKilled :: Event (), -- never gunFired :: Event Double } -- some useful auxiliary functions on GameObjects: isGunshot :: GameObject -> Bool isGunshot g@(Gun {}) = isEvent (gunFired g) isGunshot _ = False isDeadInvader :: GameObject -> Bool isDeadInvader g@(Invader {}) = isEvent (objKilled g) isDeadInvader _ = False isLandedInvader :: GameObject -> Bool isLandedInvader g@(Invader {}) = isEvent (invLanded g) isLandedInvader _ = False isBullet :: GameObject -> Bool isBullet (Bullet {}) = True isBullet _ = False isInvader :: GameObject -> Bool isInvader (Invader {}) = True isInvader _ = False bulletPaths :: [GameObject] -> [Path] bulletPaths = map objPath . filter isBullet invaderPaths :: [GameObject] -> [Path] invaderPaths = map objPath . filter isInvader hitAny :: [Path] -> Path -> Bool hitAny paths tpath = or $ map (\p -> intersectsRect p (bounds tpath)) paths -- An invader as a SimGUI. Note that the output signal is a GameObject, -- and the input signal includes a list of GameObject (an observation of -- the other members of the dynamic collection). -- mkInvader :: (RandomGen g) => g -> Double -> Point -> SimGUI () GameObject mkInvader g gameSpeed pt0 = proc ((gin,_),world) -> do invader <- rbounceInvader g gameSpeed pt0 -< () hitGround <- edge -< pointY (rectPointA (bounds invader)) > 420 hitBullet <- edge -< hitAny (bulletPaths world) invader returnA -< (renderInvader invader, Invader { objPath = invader, invLanded = hitGround, objKilled = hitBullet }) gun :: SimGUI () GameObject gun = proc ((gin,_),_) -> do mpos <- ginMouse -< gin lbp <- ginLbp -< gin let gunPos = pointX mpos gpath = gunPath gunPos returnA -< (renderGun gpath, Gun { objPath = gpath, objKilled = noEvent, gunFired = (lbp `tag` gunPos) }) -- A bullet, located at (x,y) bulletPath :: Double -> Double -> Path bulletPath x y = outline $ rectangle (point (x-2.5) (y-5)) 5 10 renderBullet :: Path -> Picture renderBullet b = withColor yellow $ picFill b -- A simple, constant velocity bullet: simpleBullet :: Double -> SF () Path simpleBullet xpos = proc _ -> do yi <- integral -< (-150) let ypos = yi + 450 returnA -< bulletPath xpos ypos bullet :: Double -> SimGUI () GameObject bullet xpos = proc ((gin,_),world) -> do b <- simpleBullet xpos -< () hitInvader <- edge -< hitAny (invaderPaths world) b returnA -< (renderBullet b, Bullet { objPath = b, objKilled = hitInvader }) -- And now just invoke the guiSimulator, passing as arguments an initial -- world, a signal function that spawns new bullets, and a function to -- determine when invaders or bullets die. -- -- This version implements just a single invader that dies when hit -- by a bullet: -- basicInvaders :: (RandomGen g) => g -> Double -> GUI () () basicInvaders g gameSpeed = proc (gin,_) -> do (pic,objs) <- guiSimulator_ world0 spawnsf (isEvent . objKilled) -< (gin,()) returnA -< (pic <++> wallPic,()) where world0 = [mkInvader g gameSpeed (point 250 0), gun ] -- A signal function that observes the external input and the collection -- output and produces an event when a new signal function should be -- spliced in to the collection. -- -- For SpaceInvaders, we examine the world for any shots fired -- from any guns, and use this to spawn a bullet from the location of -- the shot. spawnsf :: SF ((),[GameObject]) (Event [SimGUI () GameObject]) spawnsf = proc (_,world) -> do let -- spawnE :: Event [GUI () GameObject] spawnE = maybe noEvent (\g -> fmap ((:[]) . bullet) (gunFired g)) (find isGunshot world) returnA -< spawnE -- A slightly more sophisticated version; here we will spawn a new -- invader every time an invader is killed, and we keep track of score: multiInvaders :: (RandomGen g) => g -> Double -> GUI () ([GameObject],Int) multiInvaders g gameSpeed = proc (gin,_) -> do (pic,(objs,score)) <- guiSimulator world0 spawnsf (isEvent . objKilled) accScore 0 -< (gin,()) returnA -< (pic <++> wallPic,(objs,score)) where -- let's also have a few more invaders at the start, to add to the -- challenge: world0 = [mkInvader g gameSpeed (point 50 0), mkInvader g gameSpeed (point 150 0), mkInvader g gameSpeed (point 350 0), gun ] -- A signal function that observes the external input and the collection -- output and produces an event when a new signal function should be -- spliced in to the collection. -- -- For SpaceInvaders, we examine the world for any shots fired -- from any guns, and use this to spawn a bullet from the location of -- the shot. spawnsf :: SF ((),[GameObject]) (Event [SimGUI () GameObject]) spawnsf = proc (_,world) -> do nextypos <- randomRsf (50,350) g -< () let spawnBulletE = maybe noEvent (\gun -> fmap ((:[]) . bullet) (gunFired gun)) (find isGunshot world) spawnInvaderE = maybe noEvent (\inv -> objKilled inv `tag` [mkInvader g gameSpeed (point nextypos 0)]) (find isDeadInvader world) spawnE = mergeBy (++) spawnBulletE spawnInvaderE returnA -< spawnE accScore score obj = if (isInvader obj) then score+1 else score -- Now, let's add detection of when the game is over (due to an alien -- succesfully landing), and an extra "gameOver" state that will nicely -- display the user's score (over a snapshot of the Picture of the -- in-progress game) and allow the user to restart the game. -- -- Note that we all of this functionality is added as a wrapper around -- multiInvaders; no cut and paste required. -- -- We use the "kSwitch" combinator here to construct a simple state machine, -- running the game until an invader lands, and then switching into a -- "gameOver" GUI until the user restarts the game. kSwitch has the -- signature: -- kSwitch :: SF a b -- SF to run initially -- -> SF (a,b) (Event c) -- tells us when to switch -- -> (SF a b -> c -> SF a b) -- determines what we switch into -- -> SF a b -- invaders :: (RandomGen g) => g -> Double -> GUI () (Maybe ([GameObject],Int)) invaders rgen gameSpeed = kSwitch maybeInvaders checkLanding (gameOver rgen gameSpeed) where -- A lifting of the output sample to maybe type: maybeInvaders :: GUI () (Maybe ([GameObject],Int)) maybeInvaders = proc (gin,_) -> do rec (pic,(world,score)) <- multiInvaders rgen gameSpeed -< (gin,()) returnA -< (pic,Just (world,score)) -- A signal function to check whether any invader has -- succesfully landed, indicating that the game is over: checkLanding :: SF ((GUIInput,()),(Picture,Maybe ([GameObject], Int))) (Event (Picture,Int)) checkLanding = proc ((gin,_),(pic,Just (world,score))) -> do let landed = any isLandedInvader world gameOverE <- edge -< landed returnA -< (gameOverE `tag` (pic,score)) gameOver :: (RandomGen g) => g -> Double -> (GUI () (Maybe ([GameObject],Int))) -> (Picture,Int) -> (GUI () (Maybe ([GameObject],Int))) gameOver rgen gameSpeed _ (gpic,score) = kSwitch scoreGUI checklbp (\_ _ -> invaders rgen gameSpeed) where checklbp = proc ((gin,_),_) -> do ginLbp -< gin scoreGUI = proc (gin,_) -> do returnA -< (scorePic gpic score, Nothing) -- place game over message over the picture of the game: scorePic :: Picture -> Int -> Picture scorePic bg score = let f_SS_b = font "SansSerif" bold 28 in (place (point 20 100) $ withColor black $ withFont f_SS_b $ (picText "GAME OVER!" `vcomp` picText ("Your Score: " ++ show score) `vcomp` picText "Press mouse button" `vcomp` picText "to play again.")) <++> bg
